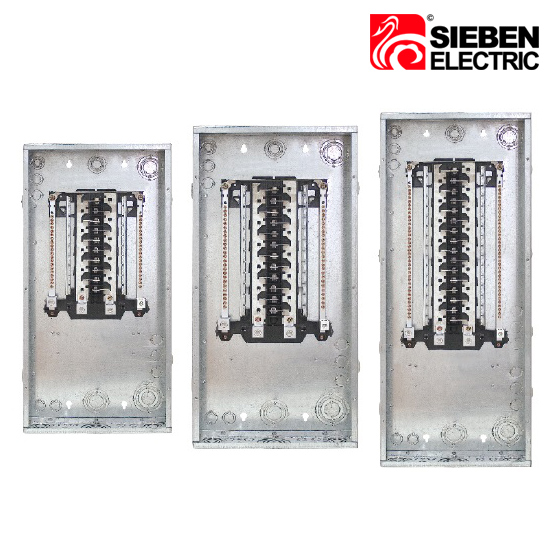

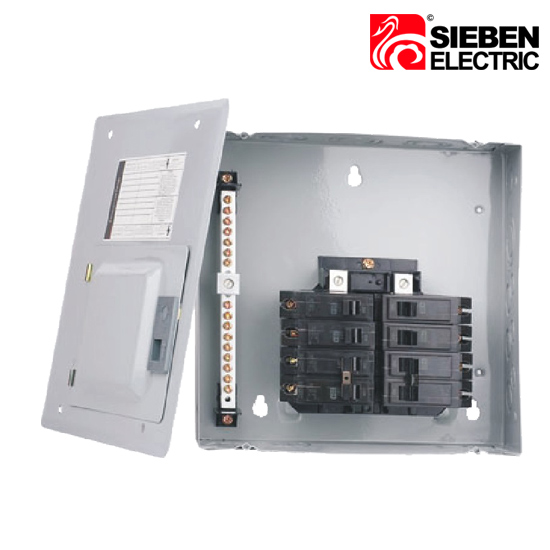

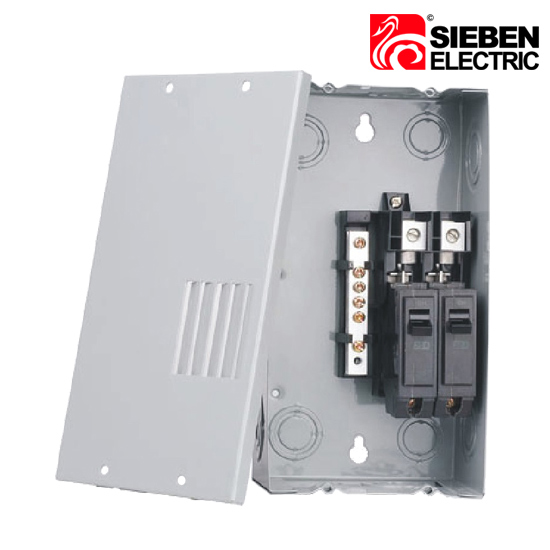

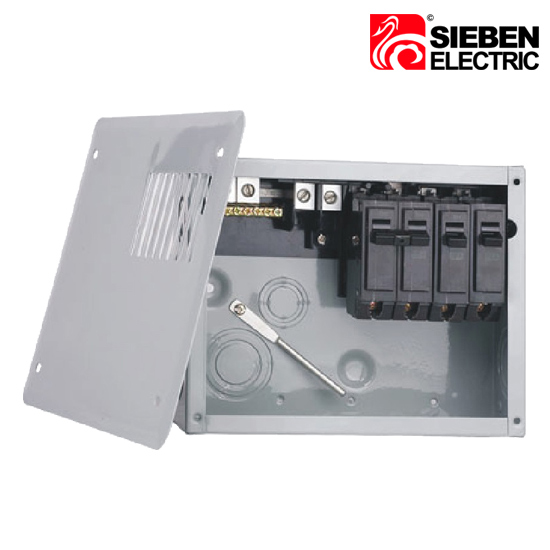

    Load Center

    Application

    MDR series load centers are designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. The are available in Plug-in designs for indoor applications.



    Features

    ○Made out of high quality steel sheet.

    ○Matt-finish polyester powder coated paint.

    ○Knockouts provided on the top and bottom of the enclosure.

    ○Suitable for rated voltage 120/240V.

    ○Flush and surface mounted designs.

    ○Wider enclosure offers easy wiring and heat dissipation.



    Specifications

    Model Code

    Phase

    Way No.

    Main Current

    Outgoings

    Body Thickness

    (mm)

    Mounting

    Type

    Poles

    Rated Current

    MDR-1102

    Single

    2

    40/70A

    2

    1~63A

    0.9~1.5

    Surface

    Flush

    MDR-1104

    4

    125A

    4

    MDR-1106

    6

    6

    MDR-1108

    8

    8

    MDR-1112

    12

    12

    Combination

    MDR-1116

    16

    200A

    16

    MDR-1120

    20

    20

    MDR-1124

    24

    125/200A

    24

    MDR-1132

    32

    200A

    32

    MDR-1140

    40

    40

    MDR-1142

    42

    225A

    42
