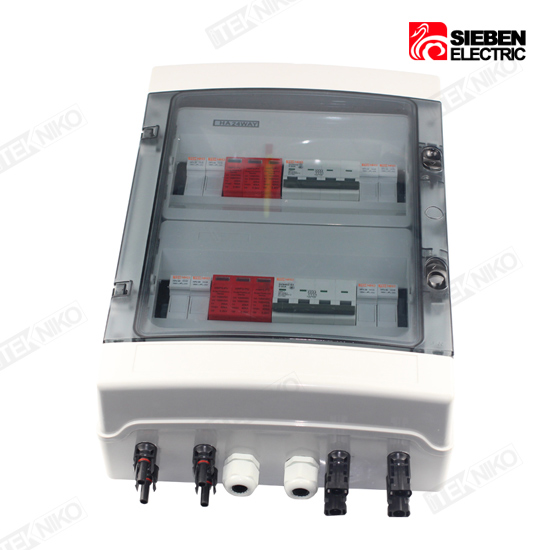

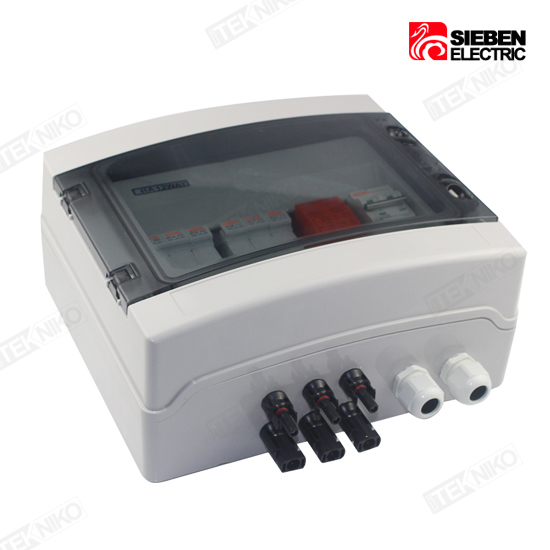

Specifications
Model | SH-PV-1/1 | SH-PV-2/1 | SH-PV-4/1 | SH-PV-4/2 | SH-PV-6/1 |
Electric parameter | |||||
System max DC volt. | 550/1000V | 1000V | |||
Max input amp for each string | 15A | ||||
Max input strings | 1 | 2 | 4 | 4 | 6 |
Max output switch amp | 16/20A | 20/32A | 50/63A | 20/32A | 20/32A |
No of inverter MPPT | 1 | ||||
No of output strings | 1 | ||||
Lighting protection | |||||
Category of test | II | ||||
Nominal discharge amp | 20kA | ||||
Max discharge amp | 40kA | ||||
Volt protection level | 2.8/3.8kV | 3.8V | |||
Max continuous operation volt Uc | 630/1050V | 1050V | |||
Poles | 2/3 | 3 | |||
Structure Characteristic | Plug-push module | ||||
System | |||||
Protection degree | IP65 | ||||
Output switch | DC circuit breaker/DC isolation switch(optional) | ||||
MC4 connector | Standard | ||||
PV DC fuse | |||||
PV SPD | |||||
Monitoring module | Optional | ||||
Preventing diode | |||||
Box Material | ABS, PC | ||||
Installation method | Wall mounting type | ||||
Operating Temp | -25℃-+55℃ | ||||
Elevation of temp | 2000m | ||||
Permissible relative humidity | 0-95% no condensation | ||||
Environment humidity | 0-99% | ||||
Installation | Yes | ||||
Box size(mm) | 295x260x140 | 295x260x140 | 410x285x140 | 295x420x140 | 410x285x140 |
