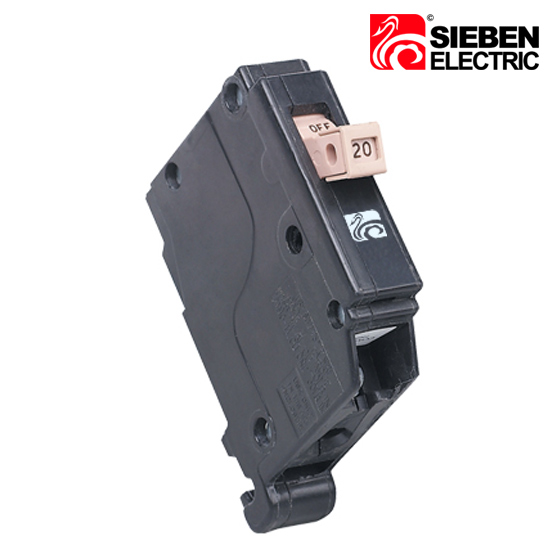

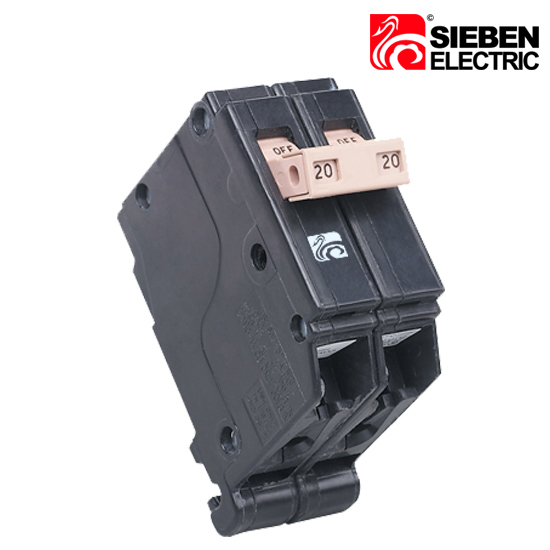

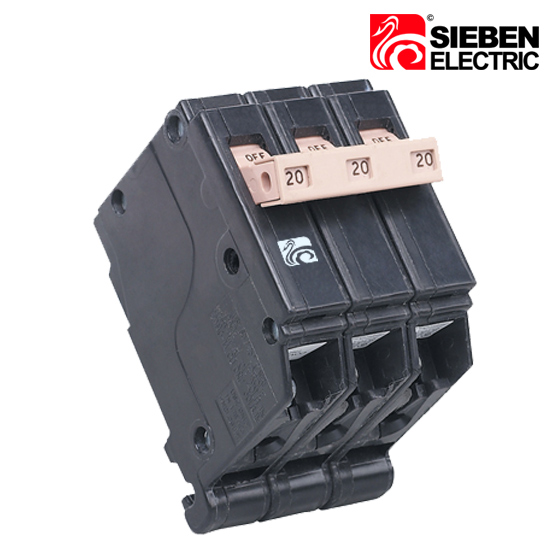

    Plug-in Miniature Circuit Breaker

    Description

    ○Protection against both overload and short circuit

    ○Use in domestic, commercial and light industrial installations

    ○Plug-in mounting base



    Features

    ○Pole no.: 1, 2, 3

    ○Body Material: Bakelite

    ○Rated voltage: AC 120/240, 240/415V

    ○Rated current(A): 5, 10, 15, 20, 30, 40, 50, 60, 75, 100

    ○Rated short-circuit capacity(Icn): 6kA

    ○Rated frequency: 50/60Hz

    ○Connection terminal: Clamp terminal

    ○Mounting: Clips pan assembly base

    ○Conforms to IEC 60898, UL 489

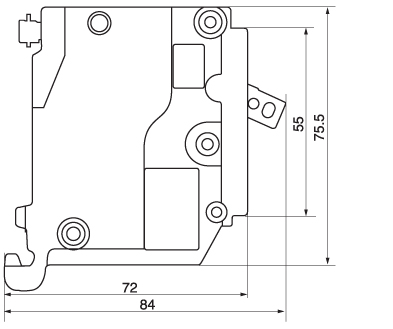

    Overall & Installation Dimensions
