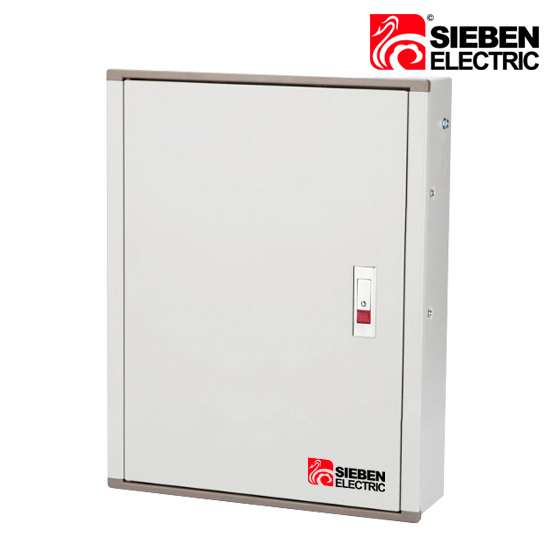

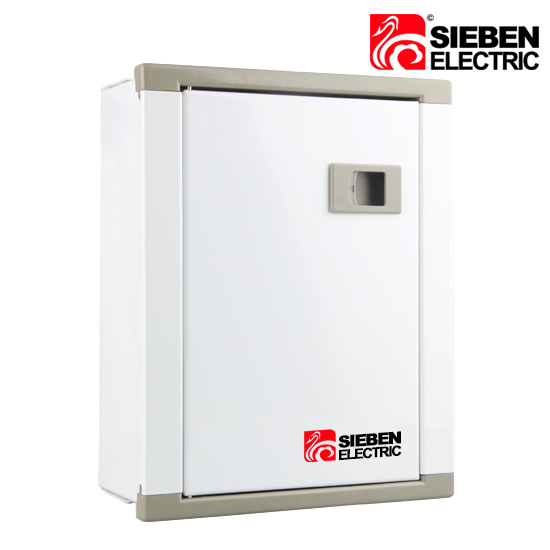

    Metal Distribution Box

    Application

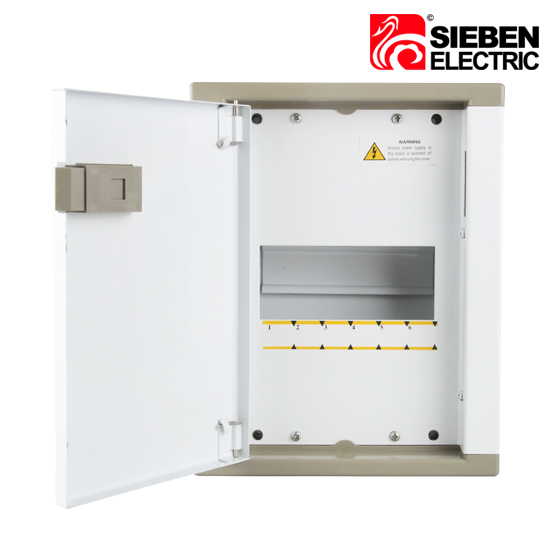

    MDA-1 series metal distribution boxes are designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. The are available in DIN-rail designs for indoor applications.



    Features

    ○Made out of high quality steel sheet.

    ○Matt-finish polyester powder coated paint.

    ○Knockouts provided on the top and bottom of the enclosure.

    ○Suitable for rated voltage 230/415V.

    ○Flush and surface mounted designs.

    ○Wider enclosure offers easy wiring and heat dissipation.



    Specifications

    Model Code

    Phase

    Way No.

    Incoming

    Outgoings

    Body Thickness

    (mm)

    Mounting

    Type

    Poles

    Rated Current

    MDA-1104

    Single

    4

    2P 100A

    4

    1~63A

    0.8 or 1.0

    Horizontal

    Din Rail

    MDA-1106

    6

    6

    MDA-1108

    8

    8

    MDA-1112

    12

    12

    MDA-1116

    16

    16

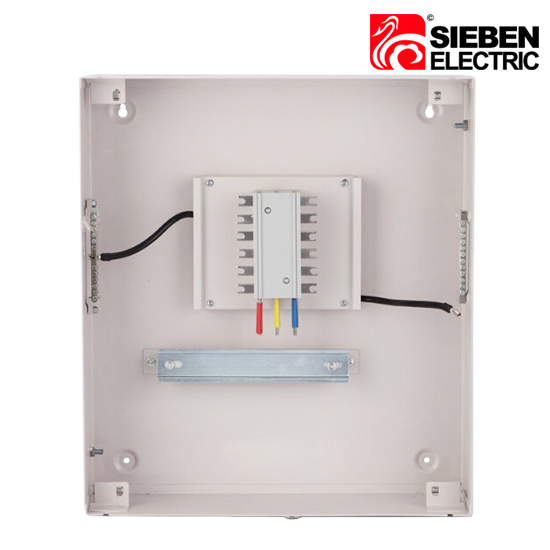

    MDA-1304

    Three

    4

    3P or 4P

    100A

    12

    1.0 or 1.2

    Vertical

    Bus Bar

    MDA-1306

    6

    18

    MDA-1308

    8

    24

    MDA-1312

    12

    36
