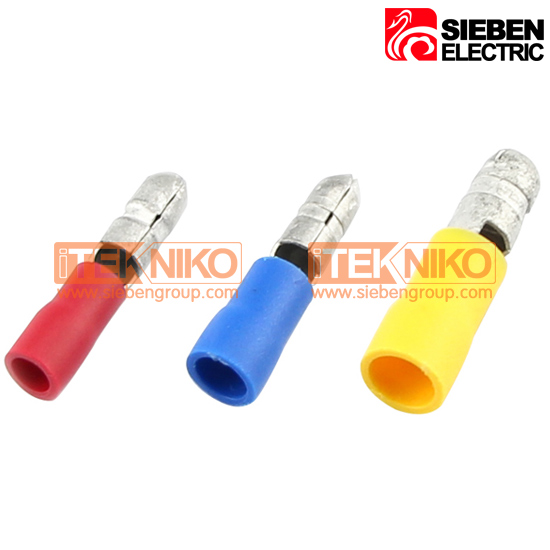

Specifications
0.5～1.5mm2(22～16) Imax=10A
Item No. | Thickness | Dimension(mm) | Color | |||||
bΦ | F | DΦ | dΦ | H | L | |||
MPD1.25-156 | 0.4 | 4.0 | 11.0 | 7.7 | 1.7 | 10.0 | 21.0 | Red |
1.5～2.5mm2(16～14) Imax=15A
Item No. | Thickness | Dimension(mm) | Color | |||||
bΦ | F | DΦ | dΦ | H | L | |||
MPD2-156 | 0.4 | 4.0 | 16.0 | 3.3 | 2.3 | 10.0 | 21.0 | Blue |
MPD2-195 | 0.4 | 5.0 | 16.0 | 3.3 | 2.3 | 10.0 | 21.0 | |
4～6mm2(12～10) Imax=24A
Item No. | Thickness | Dimension(mm) | Color | |||||
bΦ | F | DΦ | dΦ | H | L | |||
MPD5.5-195 | 0.4 | 4.0 | 11.0 | 4.5 | 3.4 | 13.0 | 25.0 | Yellow |
