Construction & Features
Material: Nylon 66, 94V-2 by UL.Heat-resisting, acid & erosion control, insulate well and not apt to age.
Operatingtemperature: -35℃ to 85℃.

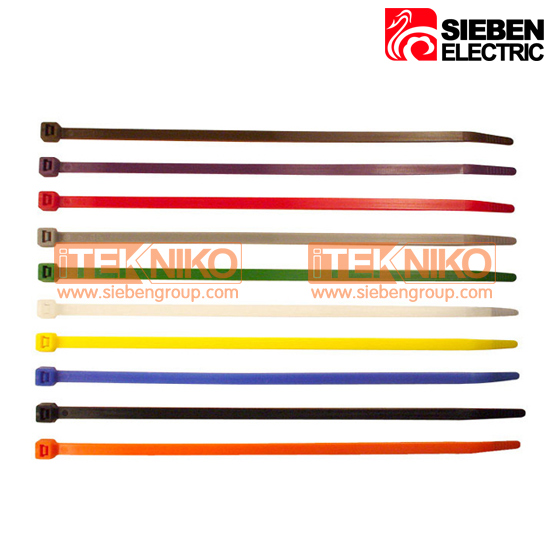

Color: Natural (or white, standard color), UV blank and other colors are available as requested.
Specifications
Item No. | L | W | Bundle Dia. | Min.loop Tensile Strength | ||
lnch | mm | LBS | KGS | |||
2.5×60 | 2 3/8″ | 60 | 2.5 | 2-11 | 18 | 8 |
2.5×80 | 3 3/16″ | 80 | 2.5 | 2-16 | 18 | 8 |
2.5×100 | 4″ | 100 | 2.5 | 2-22 | 18 | 8 |
2.5×120 | 4 3/4″ | 120 | 2.5 | 2-30 | 18 | 8 |
2.5×150 | 6″ | 150 | 2.5 | 2-35 | 18 | 8 |
2.5×160 | 6 1/4″ | 160 | 2.5 | 2-40 | 18 | 8 |
2.5×200 | 8″ | 200 | 2.5 | 3-50 | 18 | 8 |
3.6×120 | 4 3/4″ | 120 | 3.6 | 3-30 | 40 | 18 |
3.6×150 | 6″ | 150 | 3.6 | 3-35 | 40 | 18 |
3.6×180 | 7″ | 180 | 3.6 | 3-42 | 40 | 18 |
3.6×200 | 8″ | 200 | 3.6 | 3-50 | 40 | 18 |
3.6×250 | 10″ | 250 | 3.6 | 3-65 | 40 | 18 |
3.6×280 | 11″ | 280 | 3.6 | 3-70 | 40 | 18 |
3.6×300 | 11 5/8″ | 300 | 3.6 | 3-80 | 40 | 18 |
3.6×370 | 14 1/2″ | 370 | 3.6 | 3-102 | 40 | 18 |
4.8×120 | 4 3/4″ | 120 | 4.8 | 3-24 | 50 | 22 |
4.8×180 | 7″ | 180 | 4.8 | 3-42 | 50 | 22 |
4.8×200 | 8″ | 200 | 4.8 | 3-50 | 50 | 22 |
4.8×250 | 10″ | 250 | 4.8 | 3-65 | 50 | 22 |
4.8×280 | 11″ | 280 | 4.8 | 3-70 | 50 | 22 |
4.8×300 | 11 7/8″ | 300 | 4.8 | 3-82 | 50 | 22 |
4.8×350 | 13 3/4″ | 350 | 4.8 | 3-90 | 50 | 22 |
4.8×370 | 14 1/2″ | 370 | 4.8 | 3-102 | 50 | 22 |
4.8×400 | 15 3/4″ | 400 | 4.8 | 3-105 | 50 | 22 |
4.8×450 | 17 3/4″ | 450 | 4.8 | 3-130 | 50 | 22 |
4.8×500 | 19 11/16″ | 500 | 4.8 | 3-150 | 50 | 22 |
7.2×150 | 6″ | 150 | 7.2 | 3-33 | 100 | 46 |
7.2×180 | 7″ | 180 | 7.2 | 3-42 | 100 | 46 |
7.2×200 | 8″ | 200 | 7.2 | 3-50 | 100 | 46 |
7.2×250 | 10″ | 250 | 7.2 | 4-63 | 120 | 55 |
7.2×270 | 10 5/8″ | 270 | 7.2 | 4-65 | 120 | 55 |
7.2×300 | 11 5/8″ | 300 | 7.2 | 4-82 | 120 | 55 |
7.2×350 | 13 3/4″ | 350 | 7.2 | 4-90 | 120 | 55 |
7.2×370 | 14 1/2″ | 370 | 7.2 | 4-98 | 120 | 55 |
7.2×400 | 15 3/4″ | 400 | 7.2 | 4-105 | 120 | 55 |
7.2×450 | 17 3/4″ | 450 | 7.2 | 4-118 | 120 | 55 |
7.2×500 | 19 11/16″ | 500 | 7.2 | 4-150 | 120 | 55 |
7.2×750 | 29 9/16″ | 750 | 7.2 | 4-220 | 120 | 55 |
9×550 | 21 11/16″ | 550 | 9.0 | 8-160 | 175 | 80 |
9×650 | 25 9/16″ | 650 | 9.0 | 8-190 | 175 | 80 |
9×700 | 27 1/2″ | 700 | 9.0 | 10-205 | 175 | 80 |
9×800 | 31 1/2″ | 800 | 9.0 | 10-225 | 175 | 80 |
9×920 | 36 1/4″ | 920 | 9.0 | 10-265 | 175 | 80 |
9×1000 | 40 1/6″ | 1000 | 9.0 | 10-295 | 175 | 80 |
9×1150 | 45 1/4″ | 1150 | 9.0 | 10-310 | 175 | 80 |
9×1350 | 53″ | 1350 | 9.0 | 10-380 | 175 | 80 |
12×300 | 11 5/8″ | 300 | 12.0 | 12-82 | 250 | 114 |
12×400 | 15 3/4″ | 400 | 12.0 | 12-105 | 250 | 114 |
12×500 | 19 11/16″ | 500 | 12.0 | 12-150 | 200 | 114 |
12×650 | 25 9/16″ | 650 | 12.0 | 14-190 | 250 | 114 |
12×750 | 29 9/16″ | 750 | 12.0 | 10-220 | 250 | 114 |
12×780 | 30 3/4″ | 780 | 12.7 | 14-230 | 250 | 114 |
