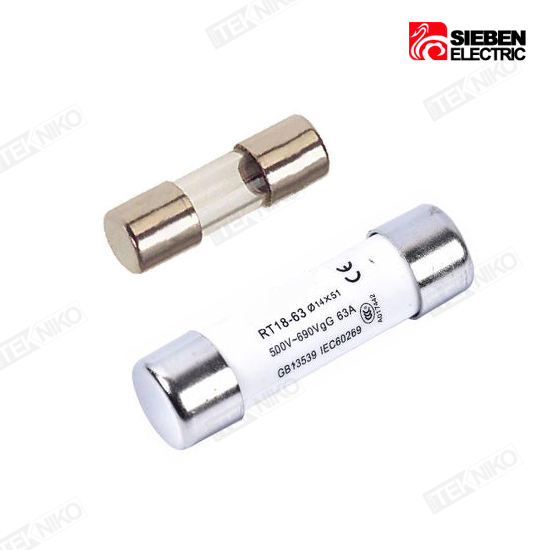

    Cylindrical Fuse Link

    Cylindrical Fuse Link

    Specifications

    ◆Applincation

        Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing in rated current up to 125A. Against damage due to overload and short circuit. Fuse link with the striker is supplied for the purpose of protecting against motor single phasing operation when fitted in fuse-isolators. This product conforms with I EC60269 and VDE0636 standards.

    ◆Specifications

    Size(mm)

    Rated Current(A)

    8.5×31.5

    0.5 1 2 4 610 16 20 25

    10×38

    0.5 1 2 4 610 16 20 25 32

    14×51

    1 2 4 6 10 16 20 25 32 40 50 63

    22×58

    2 4 6 8 10 1620 25 32 40 50 63 80 100 125

    30×58

    63 80100125,

    ◆Specifications

    Size

    Rated Current(A)

    Glass Body

    Φ5×20

    0.0315, 0.04, 0.05, 0.063,0.08,0.1, 0.125, 0.16, 0.2,0.25, 0.315,0.4, 0.5, 0.63,0.8,1,1.25,1.6, 2,2.5,3.15,4.5,6.3,7,8,9,10,12,15,16

    Φ6×32

    0.04, 0.05, 0.063, 0.08, 0.1,0.125,0.16,0.2,0.25,0 .315,0.4, 0.5, 0.63,0.8,1,1.25,1.6,2,2.5,3.15,4,5,6.3,7,8,9,10,12,15,16,20

    Porcelain
    Body

    Φ5×20

    1.6,2,2.5,3.15,4,5,6.3,7,8

    Φ6×32

    0.0315,0.04,0.05,0.063,0.08,0.1,0.125,0.16,0.2,0.25,0.315,0.4,0.5,0.63,0.8,1,1.25,1.6,2,2.5,3.15,4,5,6.3,7,8,9,10,12,16,20,25
