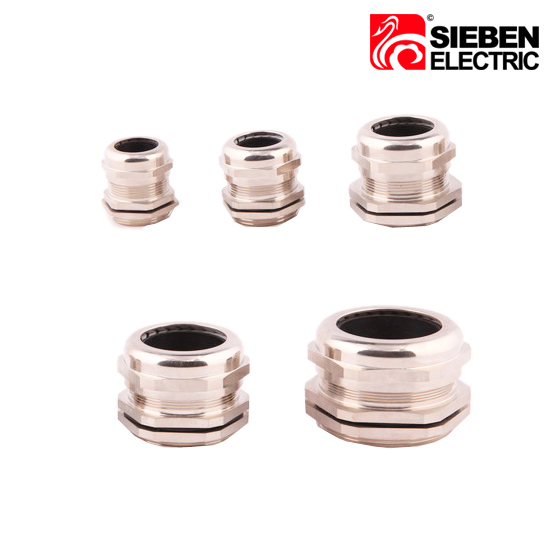

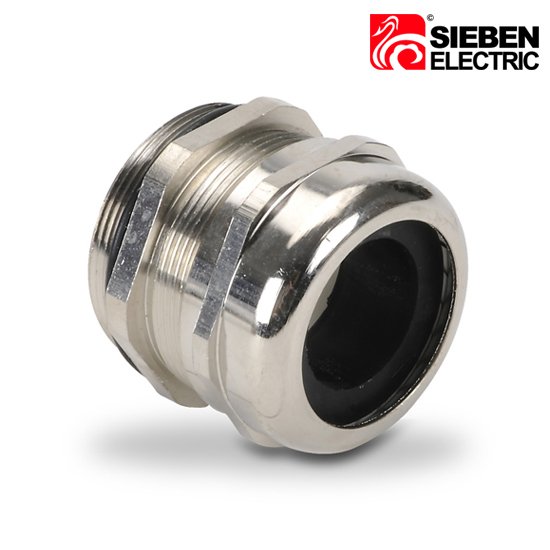

    Metal Cable Glands

    Construction & Features

    Material: Brass with nickel plated.

    Usage: Used for fixing cables and provide effective protection against dust, oil, water penetrating electrical distribution box, electromechanical control panel and other instruments. Innovative design for seal and clamp, wide clamp range, strong resistance against tensile strength and thus it can protect cables effectively.


    Specifications


    Item No.

    Cable Range

    Outer
    Diameter of
    Thread(mm)

    Mounting
    Hole Diameter
    (mm)

    Thread
    Length
    GL(mm)

    Iengthened
    Type
    GL(mm)

    Jiont
    Length
    H(mm)

    Spanner
    Size
    (mm)

    PG-7

    6.5-3

    12.5

    12.5-12.7

    7

    10

    19

    14

    PG-9

    8-4

    15.2

    15.2-15.4

    8

    10

    20

    17

    PG-11

    10-5

    18.6

    18.6-18.8

    8

    10

    21

    20

    PG-13.5

    12-6

    20.4

    20.4-20.6

    8

    15

    22

    22

    PG-16

    14-10

    22.5

    22.5-22.7

    9

    15

    23

    24

    PG-19

    14-10

    25

    25-25.2

    9

    15

    25

    24/27

    PG-21

    18-13

    28.3

    28.3-28.5

    9

    15

    27

    30

    PG-25

    22-15

    32

    32-32.2

    10

    15

    29

    35

    PG-29

    25-18

    37

    37-37.2

    11

    15

    31

    40

    PG-36

    33-22

    47

    47-47.2

    12

    15

    37

    50

    PG-42

    38-32

    54

    54-54.2

    13

    15

    38

    57

    PG-48

    44-37

    59.3

    59.3-59.5

    14

    15

    38

    65

    PG-63

    52-42

    72

    72-72.2

    15

    20

    42

    77


    Item No.

    Cable Range

    Outer
    Diameter of
    Thread(mm)

    Mounting
    Hole Diameter
    (mm)

    Thread
    Length
    GL(mm)

    Iengthened
    Type
    GL(mm)

    Jiont
    Length
    H(mm)

    Spanner
    Size
    (mm)

    M8×1.25

    4-2

    8

    8-8.2

    5

    7

    16

    11

    M10×1.5

    6-3

    10

    10-10.2

    5

    7

    16

    12

    M12×1.5

    6.5-3

    12

    12-12.2

    7

    10

    19

    14

    M14×1.5

    8-4

    14

    14-14.2

    7

    10

    19

    18

    M16×1.5

    8-4

    16

    16-16.2

    8

    10

    20

    18

    M18×1.5

    10-5

    18

    18-18.2

    8

    10

    21

    20

    M20×1.5

    12-6

    20

    20-20.2

    8

    15

    22

    22

    M22×1.5

    14-10

    22

    22-22.2

    8

    15

    23

    24

    M24×1.5

    14-10

    24

    24-24.2

    9

    15

    25

    24/27

    M25×1.5

    14-10

    25

    25-25.2

    9

    15

    25

    24/27

    M25×1.5

    18-13

    25

    25-25.2

    9

    15

    27

    30/27

    M27×1.5(2)

    18-13

    27

    27-27.2

    9

    15

    27

    30

    M28×1.5(2)

    18-13

    28

    28-28.2

    9

    15

    27

    30

    M30×1.5(2)

    18-13

    30

    30-30.2

    9

    15

    29

    30/32

    M32×1.5(2)

    22-15

    32

    32-32.2

    10

    15

    29

    35

    M33×1.5(2)

    22-15

    33

    33-33.2

    10

    15

    29

    35

    M36×1.5(2)

    25-18

    36

    36-36.2

    10

    15

    31

    40

    M37×1.5(2)

    25-18

    37

    37-37.2

    10

    15

    31

    40

    M40×1.5(2)

    25-18

    40

    40-40.2

    11

    15

    31

    40/45

    M40×1.5(2)

    30-22

    40

    40-40.2

    11

    15

    35

    45

    M42×1.5(2)

    30-22

    42

    42-42.2

    11

    15

    35

    45

    M47×1.5(2)

    33-25

    47

    47-47.2

    11

    15

    37

    50

    M48×1.5(2)

    33-25

    48

    48-48.2

    11

    15

    37

    50

    M50×1.5(2)

    38-32

    50

    50-50.2

    12

    15

    37

    57/55

    M54×1.5(2)

    38-32

    54

    54-54.2

    12

    15

    38

    57

    M56×1.5(2)

    38-32

    56

    56-56.2

    12

    15

    38

    57/59

    M60×1.5(2)

    44-37

    60

    60-60.2

    13

    15

    38

    65

    M63×1.5(2)

    44-37

    63

    63-63.2

    13

    15

    38

    65

    M64×1.5(2)

    44-37

    64

    64-64.2

    13

    15

    38

    65/68

    M72×2

    52-42

    72

    72-72.2

    15

    20

    42

    77

    M75×2

    52-42

    75

    75-75.2

    15

    20

    42

    77

    M80×2

    62-55

    80

    80-80.2

    15

    20

    45

    90

    M88×2

    70-65

    88

    88-88.2

    15

    20

    45

    94

    M100×2

    84-78

    100

    100-100.2

    15

    20

    45

    110
