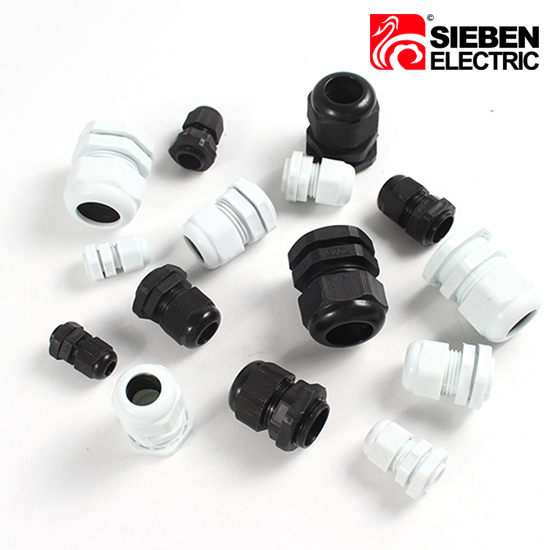

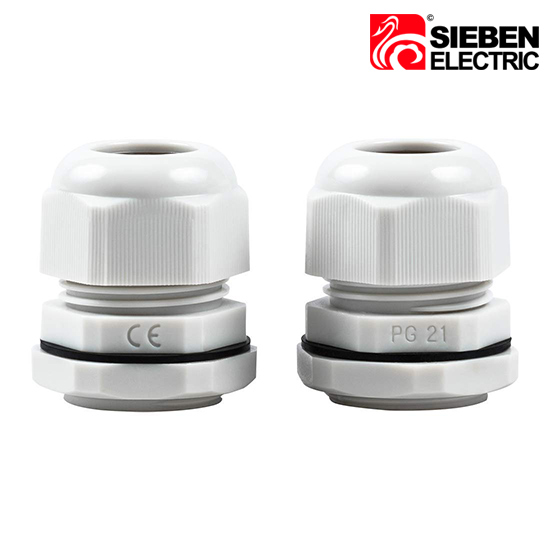

    Nylon Cable Glands Nylon Cable Glands

    Nylon Cable Glands

    Construction & Features

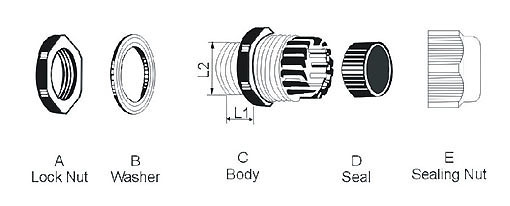

    Material: Parts A, C, E are made of nylon66, parts B and D are made of NBR.

    Feature: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent.

    Color: Black, white, grey available in other color.


    Specifications

    Item No.

    Thread
    Size

    Cable Range
    (mm)

    Thread O.D. (mm)

    Thread Length L1
    (mm)

    Spanner Size
    A&E (mm)

    PG-7

    PG-7

    3-6.5

    12.5

    9

    18/16

    PG-9

    PG-9

    4-8

    15.2

    9

    22/19

    PG-11

    PG-11

    5-10

    18.6

    9

    24/22

    PG-13.5

    PG-13.5

    6-11

    20.4

    10

    27/24

    PG-16

    PG-16

    10-13

    22.5

    10

    30/27

    PG-19

    PG-19

    12-15

    24

    10

    30/28

    PG-21

    PG-21

    13-18

    28.3

    12

    35/33

    PG-25

    PG-25

    16-21

    30

    12

    37/35

    PG-29

    PG-29

    18-25

    37

    12

    45/42

    PG-36

    PG-36

    22-32

    47

    15

    58/52

    PG-42

    PG-42

    32-38

    54

    18

    62/58

    PG-48

    PG-48

    37-44

    59.3

    18

    70/64

    PG-63

    PG-63

    42-50

    71

    30

    83/77


    Item No.

    Thread
    Size

    Cable Range
    (mm)

    Thread O.D. (mm)

    Thread Length L1
    (mm)

    Spanner Size
    A&E (mm)

    M12

    M12×1.5

    3-6.5

    12

    9

    18/16

    M16

    M16×1.5

    4-8

    16

    9

    22/19

    M18

    M18×1.5

    5-10

    18

    9

    24/22

    M20

    M20×1.5

    6-11

    20

    10

    27/24

    M22

    M22×1.5

    10-13

    22

    10

    30/27

    M24

    M24×1.5

    12-15

    24

    10

    30/28

    M25

    M25×1.5

    13-18

    25

    11

    31/28

    M27

    M27×1.5

    13-18

    27

    12

    35/33

    M28

    M28×1.5

    13-18

    28

    12

    35/33

    M30

    M30×1.5

    16-21

    30

    12

    37/35

    M32

    M32×1.5

    18-25

    32

    12

    38/35

    M36

    M36×1.5

    22-32

    36

    12

    45/42

    M40

    M40×1.5

    22-32

    40

    15

    52/52

    M46

    M46×1.5

    32-38

    46

    15

    58/52

    M50

    M50×1.5

    37-44

    50

    18

    62/58

    M58

    M58×1.5

    37-44

    58

    18

    70/64

    M63

    M63×1.5

    37-44

    63

    18

    72/64

    M71

    M71×1.5

    42-50

    71

    30

    83/77
