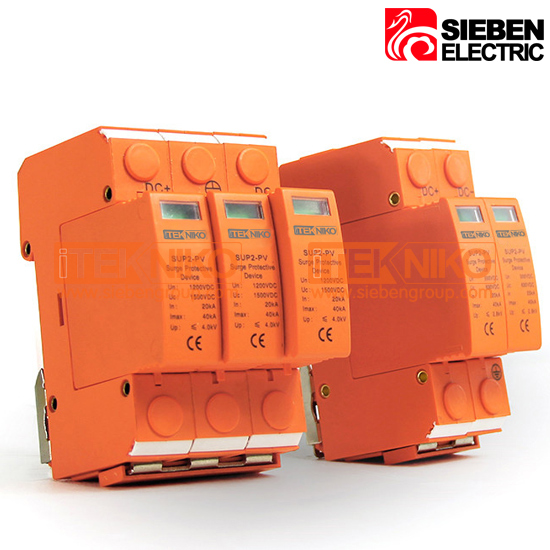

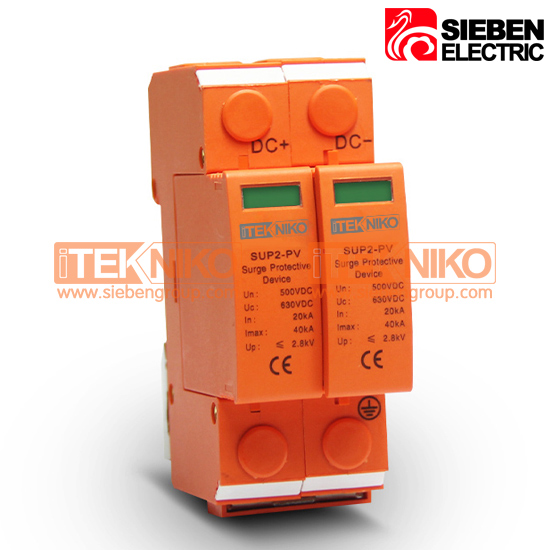

    PV DC Surge Protection Device

    Specifications

    Normal PV System Voltage (V)

    1000

    1200

    1500

    MCOV (V DC)

    1170

    1200

    1500

    Max System Discharge Current (kA)

    40

    30

    30

    Voltage Protection Level (kV)

    4

    4.5

    4.5

    Voltage Protection Level at 5kA (kV)

    3.5

    4

    4

    Integrated Fuse Breaking Capacity (kA/V DC)

    30/100

    30/1200

    30/1500

    Technology

    Short-current interruption overload protection

    Normal Discharge Current (kA)

    12.5

    Response Time (ns)

    25

    Operating State/Fault Indication

    Green-Good, Red-Replace

    Conductor Rating & Cross-sectional Area

    Min

    60/751.5mm2/14AWG solid/flexible

    Max

    60/7535mm2/2AWG Standard/25mm2/4AWG flexible

    Mounting

    35mm din rail EN60175

    Body Material

    UL94-V0 thermo-plastic

    Standards

    IEC61643-11 type 2, IEC61643-1 class II
