Descriptions

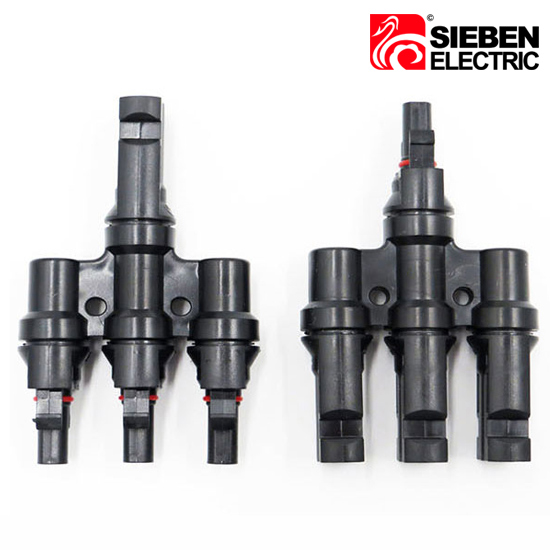

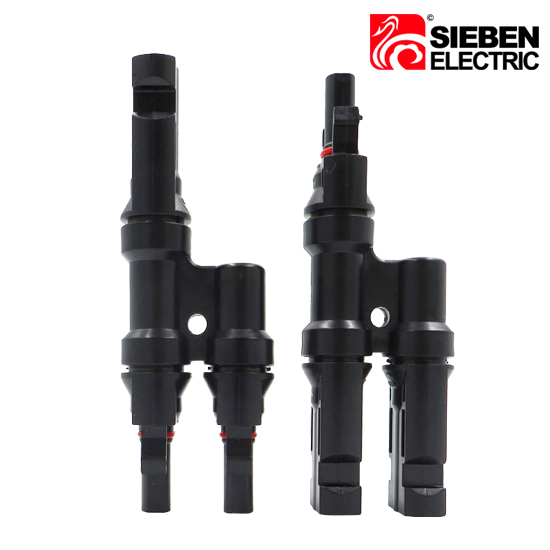

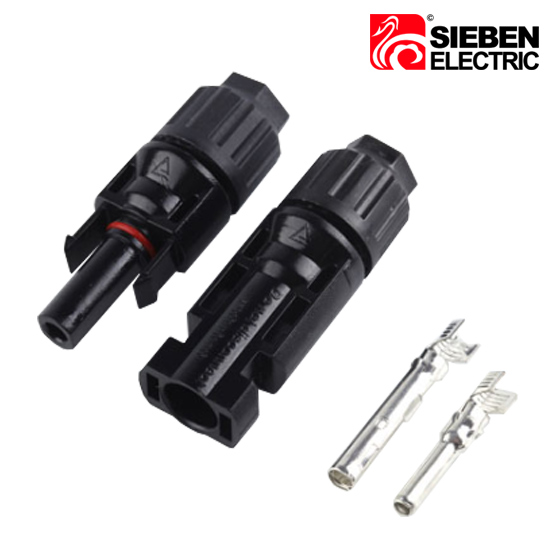

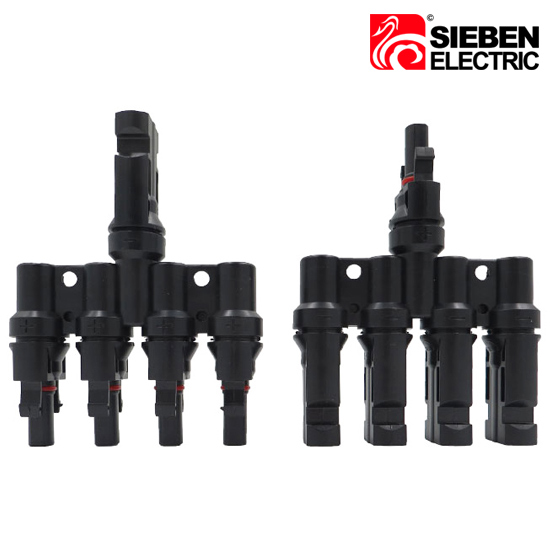

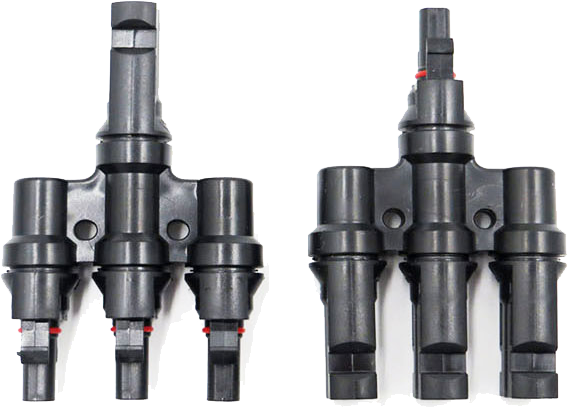

MC4 PV solar cable connector is designed and used to the solar cable connection with high protection grade.
Features
○Sealing design, protection degree can reach IP67
○Material: PC or PPO body & thick tinned copper parts
○High temperature & fire resistance
○Insulating elements, more safe
Specification
Model Code | Rated Voltage | Resistance | Wiring Capactity | Rated Current | Temp Range | Rated Insulation Voltage | Rated Impulse Voltage | Stanrad |
MC4-1T | 1000V DC | ≤0.5mΩ | 2.5~6mm2 | 30A | -40~+85℃ | 6000V | 8000V | EN 62852: 2015 IEC 62852 (Ed. 1) |
MC4-2T | 1.5~6mm2 | |||||||
MC4-3T | 2.5~6mm2 | |||||||
MC4-4T | ||||||||
MC4-5T | 1.5~6mm2 | |||||||
MC4-6T |

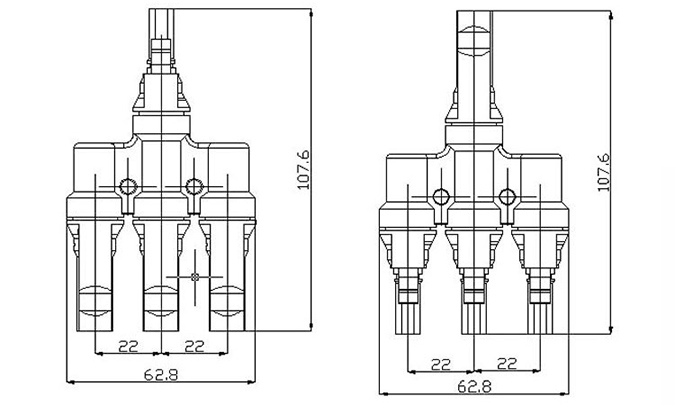

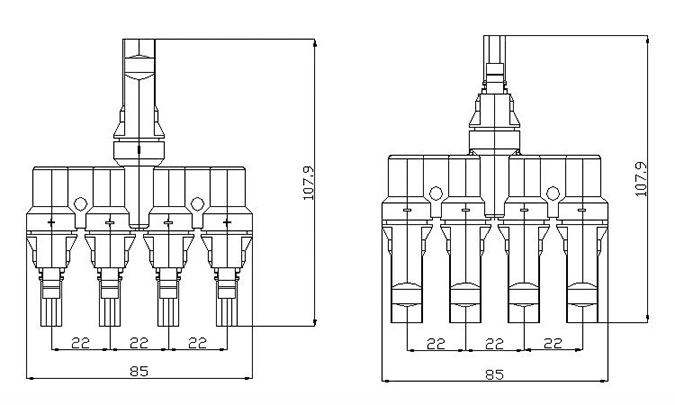

Dimensions
