Specifications
0.5～1.5mm2(22～16) Imax=19A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||

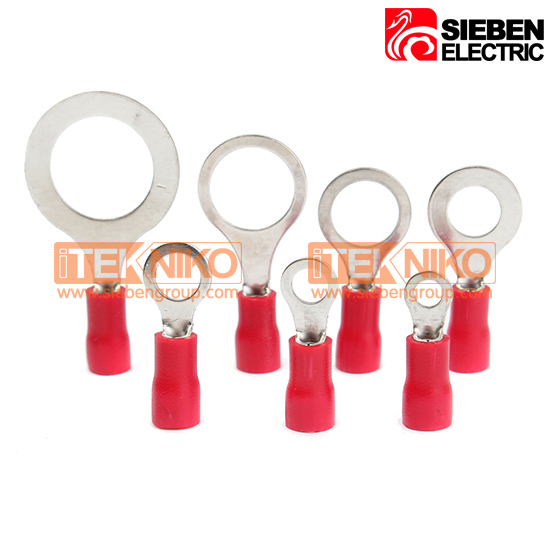

RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | |||
RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RV1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
RVL1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
RV1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | |||
RVS1.25-6 | 1/4 | 6.5 | 9.8 | 23.0 | 8.5 | |||
RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
RV1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.0 | |||
1.5～2.5mm2(16～14) Imax=27A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||

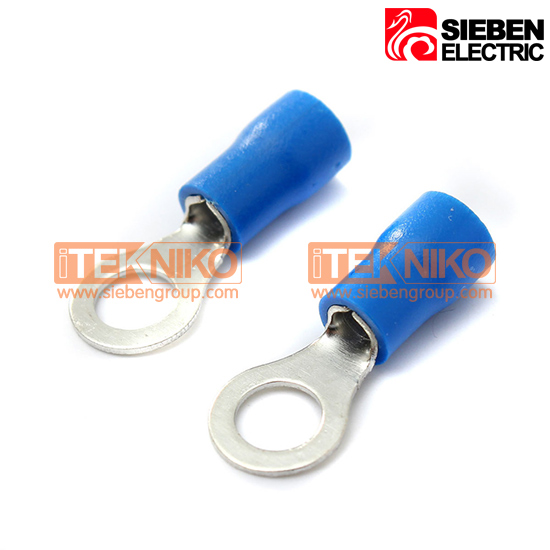

RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
RVM2-3.5 | #6 | 3.7 | 6.6 | 21.0 | 7.0 | |||
RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
RVS2-4 | #8 | 4.3 | 6.6 | 21.0 | 7.0 | |||
RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
RV2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
RV2-6 | 1/4 | 6.5 | 12.0 | 27.6 | 11.0 | |||
RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
RV2-12 | 1/2 | 13.0 | 19.2 | 36.5 | 16.5 | |||
2.5～4mm2(14～12) Imax=37A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||
RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
RV3.5-6 | 1/4 | 6.5 | 12.0 | 27.9 | 7.7 | |||
4～6mm2(12～10) Imax=48A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||

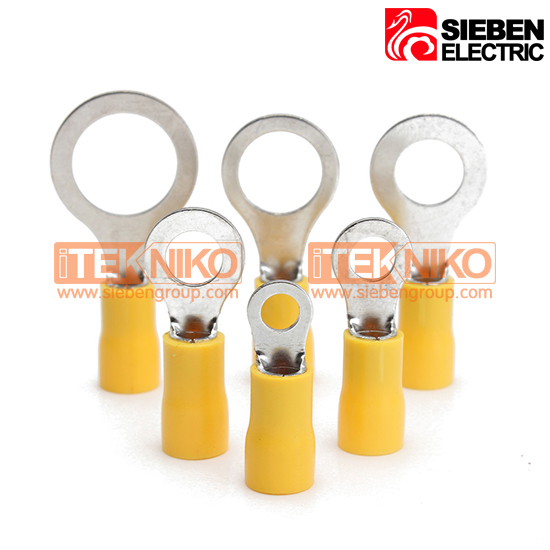

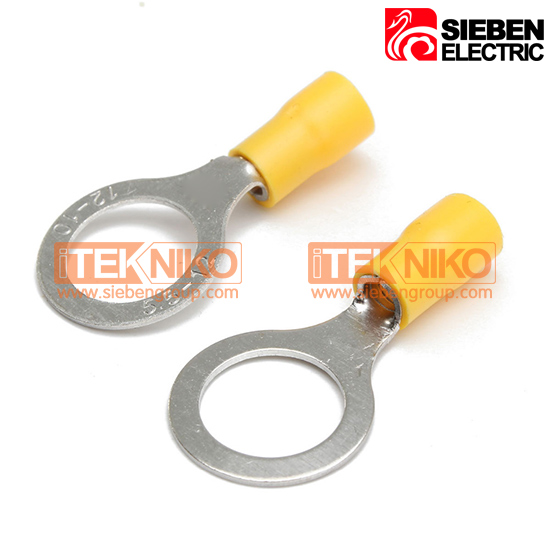

RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.5 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | |||
RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | |||
