Specifications
0.5～1.5mm2(22～16) Imax=19A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||
SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
SVS1.25-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | |||
SVM12.5-6 | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 | |||

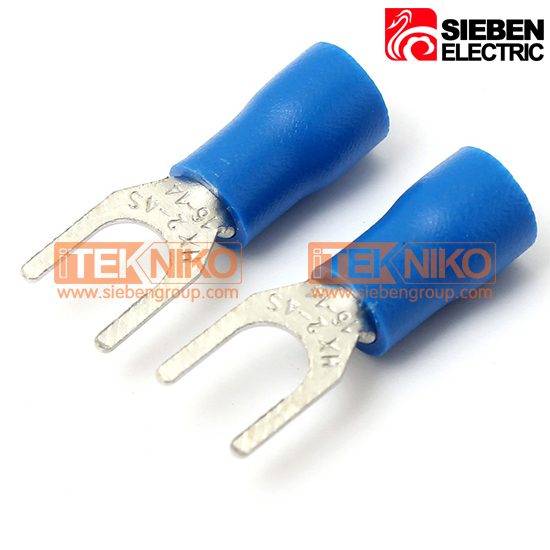

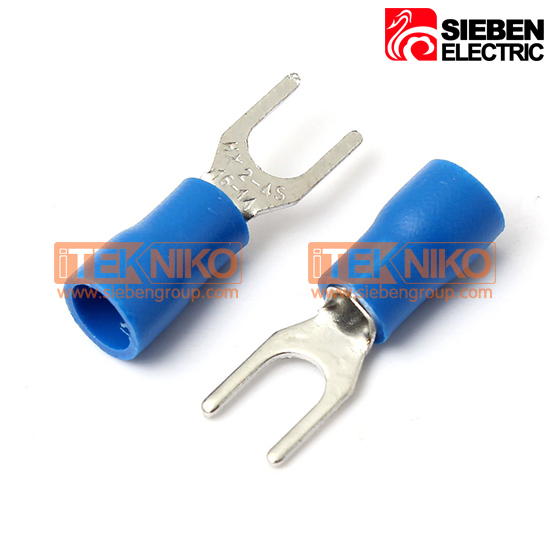

1.5～2.5mm2(16～14) Imax=27A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||
SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
SVL2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | |||
SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
SVS2-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | |||
SVM2-6 | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 | |||
2.5～4mm2(14～12) Imax=37A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||
SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 12.5 | 6.2 | Black |
SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | |||
SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | |||
SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 12.1 | |||
4～6mm2(12～10) Imax=48A
Item No. | USA Screw | Dimension(mm) | Color | |||||
d2 | B | L | F | H | DΦ | |||
SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | |||
SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
SVS5.5-6 | 1/4 | 6.5 | 9.0 | 25.2 | 7.5 | |||
SVL5.5-6 | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 | |||
SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
