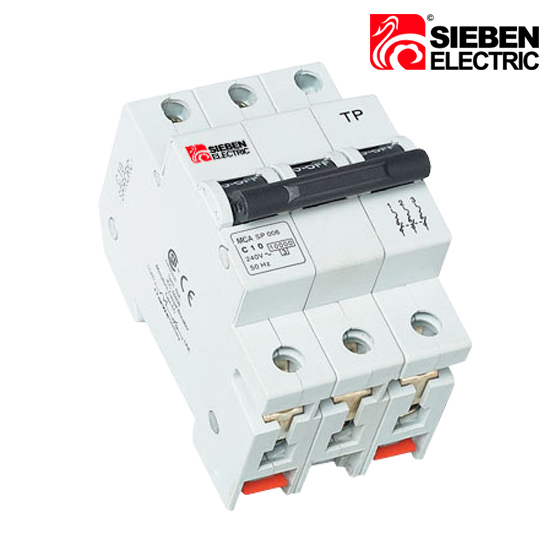

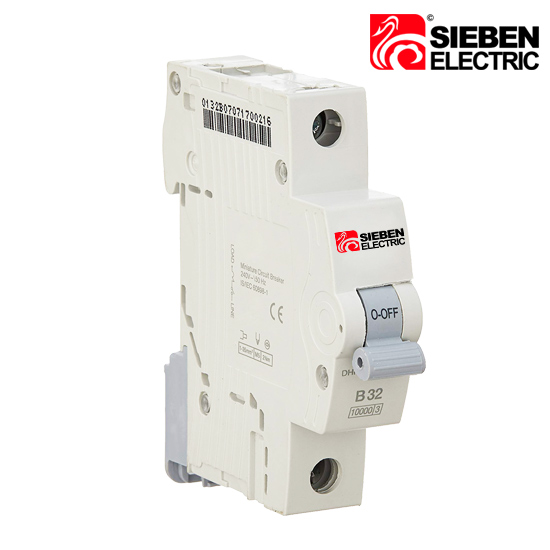

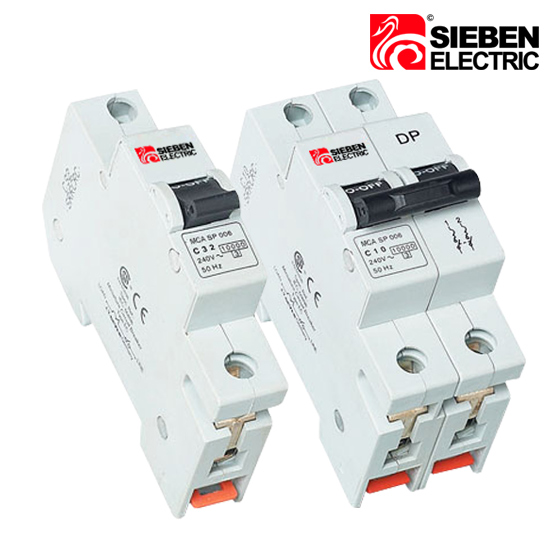

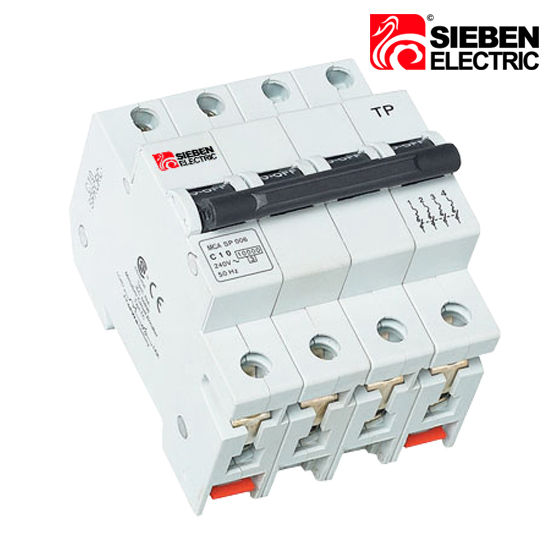

    Din-rail Miniature Circuit Breaker

    Construction & Features

    ○Protection against both overload and short circuit

    ○High short-circuit capacity

    ○Applicable to terminal and busbar connection

    ○Easy mounting onto 35mm din rail



    Features

    ○Pole no.: 1, 2, 3, 4

    ○Rated voltage: AC 230/400V

    ○Rated current(A): 6, 10, 16, 20, 25, 32, 40, 50, 63

    ○Tripping curve: B, C, D

    ○Rated short-circuit capacity(Icn): B, C: 10kA   D: 6kA

    ○Rated frequency: 50/60Hz

    ○Energy limiting class: 3

    ○Rated impulse withstand voltage: 6.2kV

    ○Electro-mechanical endurance: 8000 cycles

    ○Connection terminal: Screw or pillar terminal with clamp

    ○Connection capacity: Rigid conductor upto 25mm2

    ○Fastening torque: 2.0Nm

    ○Installation: On symmetrical 35mm din rail or panel mounting

    ○Terminal connection height: 21mm

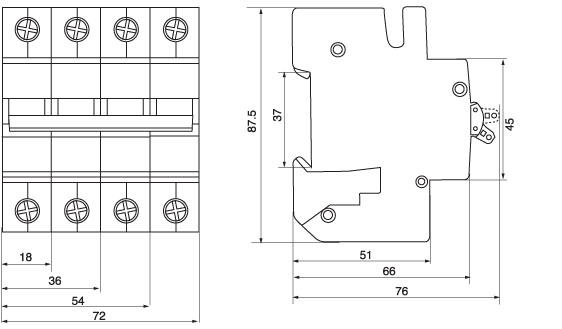

    Overall & Installation Dimensions
