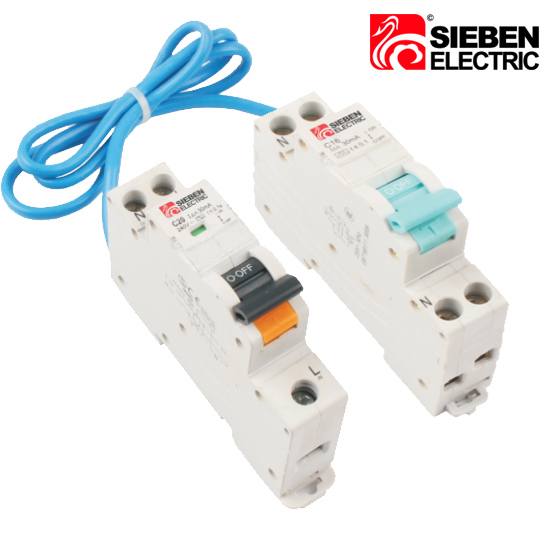

    Residual Current Circuit Breaker with Overload Protection

    Residual Current Circuit Breaker with Overload Protection

    Construction & Features

    ○Protection against both earth fault/leakage current and function of isolation

    ○High short-circuit current withstand capacity

    ○Applicable to terminal and busbar connection

    ○Auto disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

    ○Easy mounting onto 35mm din rail

    ○Independent of power supply and line voltage, and free from external interference, voltage fluctuation



    Features

    ○Residual current characteristics: A, AC

    Pole no.: 1P+N

    ○Rated voltage: AC 240V

    ○Rated current(A): 6, 10, 16, 20, 25, 32

    ○Rated residual operating current I△n(A): 0.03, 0.1

    ○Tripping curve: B, C

    ○Rated short-circuit capacity (Icn): 4.5kA, 6kA

    ○Rated frequency: 50/60Hz

    ○Tripping duration: Instantaneous tripping ≤0.1s

    ○Electro-mechanical endurance: 4000 cycles

    ○Connection terminal: Screw or pillar terminal with clamp

    ○Connection capacity: Rigid conductor upto 16mm2

    ○Fastening torque: 2.0Nm

    ○Installation: On symmetrical 35mm din rail or panel mounting
