Construction & Features

○Protection against both overload and short circuit

○High short-circuit capacity

○Contact position indication

○Applicable to terminal and busbar connection

○Easy mounting onto 35mm din rail

Features

○Pole no.: 1, 2, 3, 4

○Rated voltage: AC 230/400V

○Rated current(A): 20, 25, 32, 40, 50, 63, 80, 100 (125)

○Tripping curve: C, D

○Rated short-circuit breaking capacity(Icn): 25kA

○Service short-circuit breaking capacity(Ics): 15kA

○Rated frequency: 50/60Hz

○Rated impulse withstand voltage: 6kV

○Electro-mechanical endurance: 8000 cycles

○Connection terminal: Pillar terminal with clamp

○Connection capacity: Rigid conductor upto 50mm²/flexible conductor upto 35mm²

○Installation: On symmetrical 35mm din rail or panel mounting

○Terminal connection height: 19mm

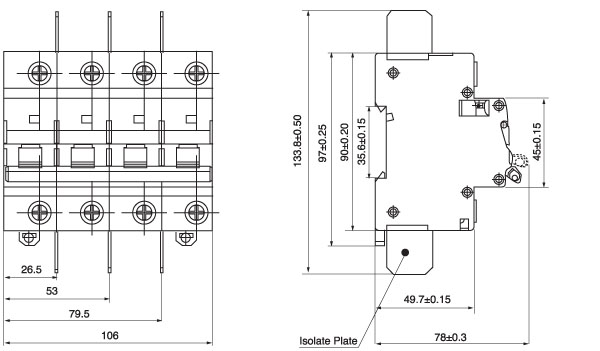

Overall & Installation Dimensions
