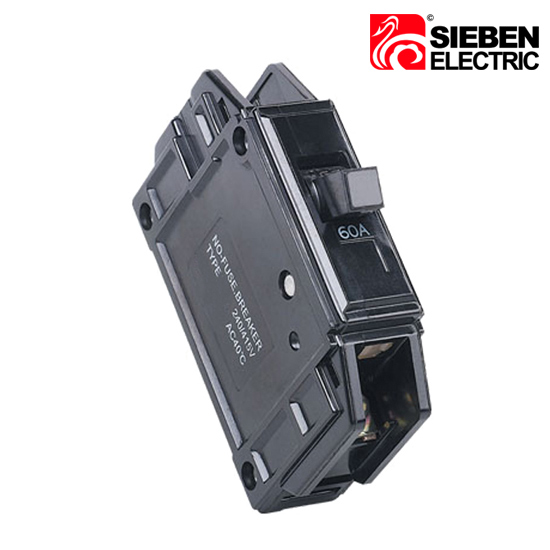

Description

○Protection against both overload and short circuit

○Use in domestic, commercial and light industrial installations

○Bolt-on mounting base

Features

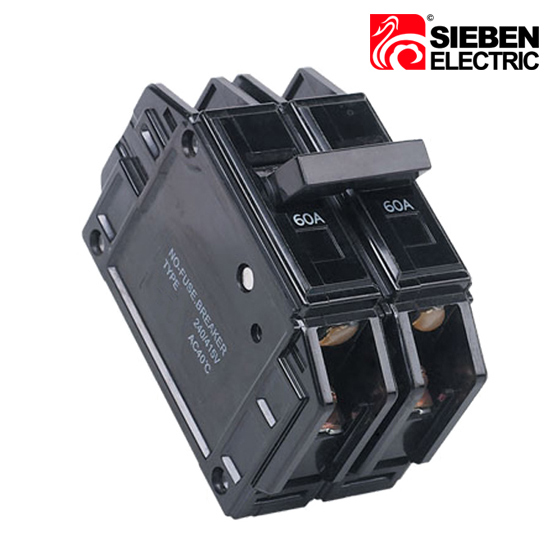

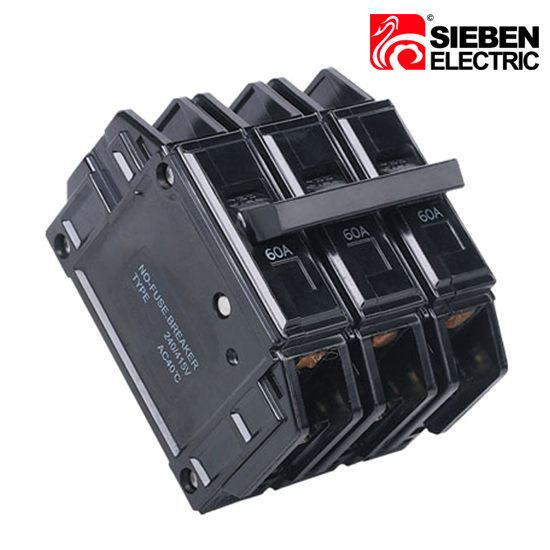

○Pole no.: 1, 2, 3

○Rated voltage: AC 120/240, 240/415V

○Rated current(A): 5, 10, 16, 20, 25, 30, 40, 50, 60

○Rated short-circuit capacity(Icn): 3kA

○Rated frequency: 50/60Hz

○Degree of protection: IP20

○Connection terminal: Clamp terminal

○Mounting: Clips mounting base

○Conforms to IEC 60898, BS 3871-Pt1

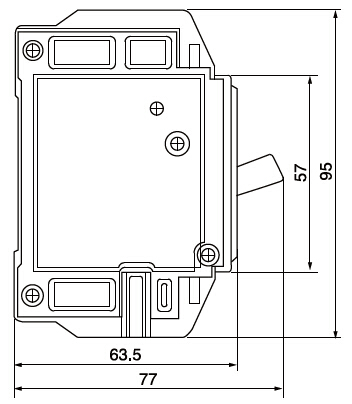

Overall & Installation Dimensions
